UPRINTJET LD20iⅡ Handheld Portable Mini Fiber Laser Marking Machine
Model No.: LD20iⅡ
Description
Main Features
UPRINTJET MX2 Industrial Automatic Online Inkjet Coding Machine support 1-10 lines. Printing height 0.08-1inch (2-25.4mm). this machine is equipped with 4.3-inch HD touch screen, high-sensitivity and 600DPI High resolution. Support Flash spray, strong spray, movable bar code, movable two-dimensional code, etc. It can be sprayed on metal, plastic, wood, aluminium platinum, carton, building materials, electronic products and other surfaces. Suitable for use with assembly line.

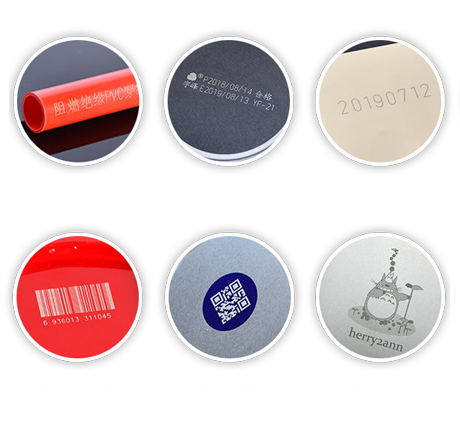

Supply Practical Results
Permanently mark production date, data matrix codesQR codes, serial numbers, barcodes, logos. efficient and professional.
Smart Red-light Positioning System

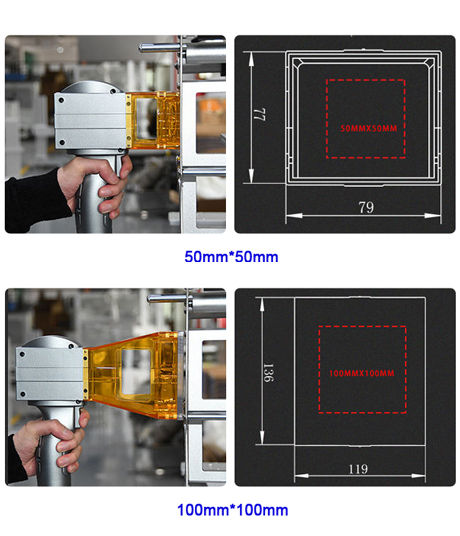

Flexible Marking Positionand Marking Field2 types of marking field for you to choose from 50x50mm and 100x100mm
4 Leg Design For Stable Use
The brand new machine casing is made of high hardnessengineering grade plastic, which protects the machine againstdust particles and water drops in different types of production environment.

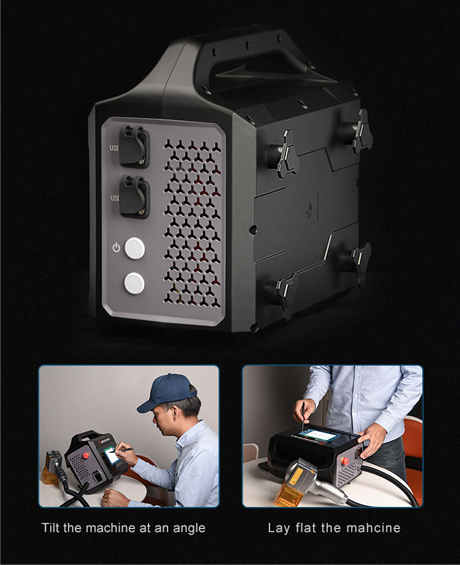

Portable Design
UPRINTJET Handheld Portable Mini Fiber Laser Marking Machine has 3.5 to 5.5 hours of use (Depends on actual temperature), 6 hours standby time. No need power cable, you can carry the machine to anywhere.
We Dont Drop Any Details
lnnovative use of gasket helps you control thefocal length easily on any items. item size wont be aproblem when marking.
Ergonomic Marking Head
One-button marking technology with compact designCapable of marking items that would not fit into traditional marking systems.
High Performance Chipset
High performance and stable features allow machine to workfor a long time in harsh environments. You can mark a depth by setting the machine laser power.
Specifications
Product Specifications
Case Material:   Engineering plastic
Laser Type:
  Fiber laser source
Laser Power:
  ≥20W
Laser Wavelength:   1064nm
Maximum Pulse Energy:   0.8mj
Frequency Range:   1-600kHz
Scanning Method:
  High-precision two-dimensional
Mark Speed:
  ≤7000mm/s
Control System:   Highly-integrated motherboard, Linux system
Cooling System:   Air cooled
Type of Marking Line:   Dot matrix and vector
Marking Range:   Standard 50mm*50mm or 100mm*100mm
Positioning Method:
  Red light positioning
Lines of Marking:
  No limit within the marking range
Marking Speed:   650 characters/sec
File Format:   BMP/DXF/HPGL/JPEG/PLT
Code Type:   Code39,Code128,Code126,EAN13,GS1DM,PDF417,AZTECCODE etc
Power Supply:
  220V
Power Consumption:
  ≤200W
Weight:   9KG
Working Condition:   0-40℃,30-85RH
