UPRINTJET Portable Handheld Inkjet Printer B35 Printing Height 0.098-1 inch
Model No.: B35
Description
Main Features
UPRINTJET B35 Portable Handheld inkjet printer printing height: 0.098 inch(2.5mm) -1 inch(25.4mm). Support 1 to 10 Lines of printing. Max length of single printing: 406mm. Support to print on various of materials and contents. Edit content directly on the machine or use a U disk to import your customized content. Can be installed on the bracket to cooperate with the assembly line. Support variable text, variable barcode, variable QR code. Can 360° Code spurting various of content, such as text, lot number, barcode count, picture (BMP), logo, expiry date, manufacture date, expiry date, production date etc,. Support 18 Language (English, Spanish, Japanese, Italian, Italian, Arabic,Korean, Portuguese etc.).
1 Inch Handheld Printer For Any Surface
UPRINTJET B35 25.4mm handheld printer with high resolution print on a variety of materials, including carton boxes, glass, bottle, wood, metal board, leather, cloth, steel pipe, aluminum cans, timber, tube, automotive parts and so on. Handheld portable printer print on uneven or curve surfaces, using the metal jig, could have better printing performance.
Fiberboard
PVC
Carton
Glass
Steel pipes
Paper bag
Ceramics
Cloth
Tinfoil
Stainless Steel
Plastic
Leather
Multiple Printing Content & Variable Data
UPRINTJET B35 One Inch Handheld inkjet printer gun support print Variable Text, Variable QR codes, Variable Barcode, Lot/Batch Numbers, Production Date, Expiration date, Pictures (PNG, JPEG, BMP), Logo, Counter and so on. Widely used in various industries: warehouse, manufacturing, logistics, convenient store, supermarket, DIY design workshop, T-shirt DIY studio and home use etc.,.
Production Date
Bitmap Font
Custom Font
Logo/Trademark
QR Code
Barcode
Signs / Picture
Serial Number
Stable & Sensitive Touch Screen

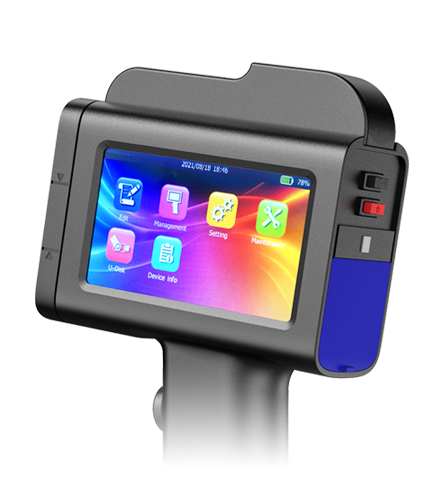

UPRINTJET B35 Handheld inkjet coder 1 inch is equipped with 4.3 inch sensitive and accurate touch capacitive screen, clear image display. The navigation interface is intuitive and easy to operate. Handheld printer gun 25.4mm comes with a original 42ml solvent fast drying black ink cartridge, easy replacement, clear and smooth, firm adhesion, intelligent ink saving. Support you to print up to 2,000,000 characters at 4.2mm font size.
Intelligent Handheld Label Printer 1 Inch

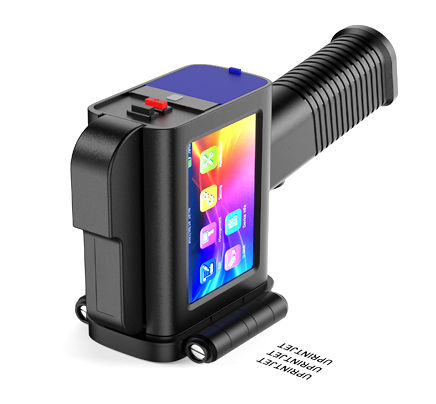

UPRINTJET B35 Date coder is only 460g lightweight and the handle is comfortable to hold. Code printer 1 inch can be installed on a conveyor belt to achieve automatic production. UPRINTJET will be provided for 12 Month warranty after-sales and lifetime technical support.
Precautions
1. Prohibition of the use of non-original ink cartridge.

2.After the machine finishes printing, please cover the print head cover in time to prevent the print head of the ink cartridge from being blocked.

3.Please use the original cleaning liquid to clean the nozzle.

4.When cleaning the machine,keep away from water and do not use chemical solvents.

5.Don’t place the machine in a wet environment for a long time,causing the circuit to be damp.

6.If there is serious whiteness and lack of color during printing,please use the ink absorption clip to suck the nozzle.
Specifications
Product Specifications
Operation System:   Linux
Display Screen:
  4.3 inch color lcd touch screen
External Interface:
  USB interface, Power adapter interface, Photoelectric sensor interface
Trigger Mode:   Hall sensor trigger, Continuous printing, Photoelectric sensor trigger
Status Display:   Green means ready status, Blue means printing status, Red means alarm status
Jet Printing Content:   Text,number,picture, date,counter,QR code, barcode,Variable data.
Jet Printing Font:
  Vector font, Dot matrix font, Custom font
Jet Printing Accuracy:
  300dpi
Jet Printing Height:   Minimum 2.5mm, Maximum 25.4mm
Ink Capacity:   42ml
Jet Printing Rows:   Up to 10 lines
Nozzle Height:
  25.4mm
Jet Printing Distance:
  2-5mm (Distance between nozzle and object)
Jet Printing Speed:   Fastest 10m/min
Ink Type:   Water-based / Solvent
Power:   Input AC100-245v, Output DC 9V 2A
Weight:
  0.46kg (with battery)
Storage Capacity:
  512MB
Machine Size:   136*49.9*232.6mm
